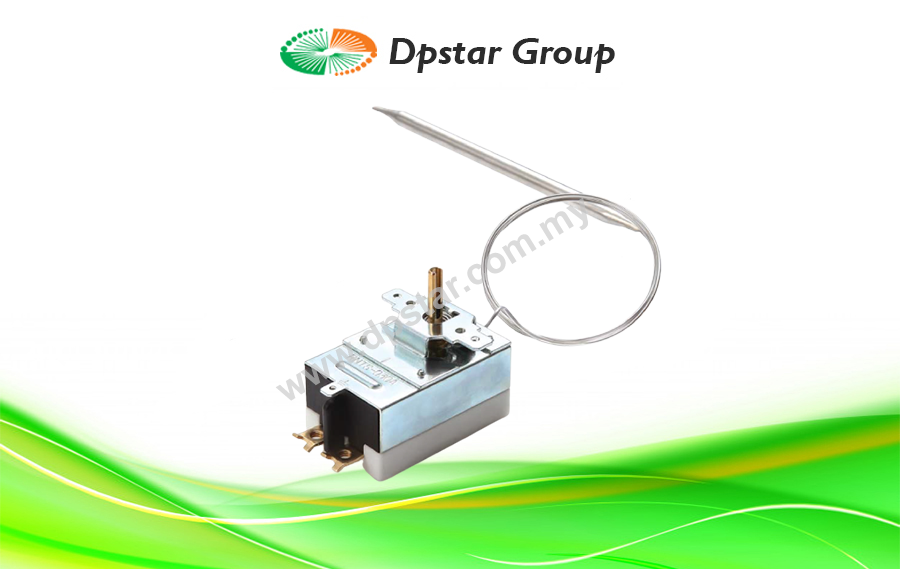

High Ampere Capillary Thermostat – Rainbow RNTS-200

Features

  • Only for high ampere, suitable as a high ampere electric heater.
  • Temperature range: 0°C ~ 200°C
  • Power rating: 30A/250VAC
  • Switch circuit: Single Pole Single Throw (SPST)
  • Be able to connect directly without using extra magnet switch or relay.
Enquiry

Dpstar has been supplying a variety of thermometers and thermostat-related products for over 30 years. We strive to upgrade the quality of our products through continuous research and development.

Operation

This thermostat functions as maintaining adjusted temperature by measuring external and internal temperature of the equipments as an expanding-liquid thermostat. If the sensor detects the heat, the liquid expands and it extends the space of diaphragm, and that power enables making and breaking contact points of the switch. It is an automatic reset product that repeats going up and down within the range of adjusted temperature.

Features

RNTS-200 is designed to use up to double amounts (30A), compared to ordinary thermostats, so you can use this product without using separate relay or magnet switch when using high ampere electric heater.

Drawing

Application

  • Midnight electric boiler
  • Water heater
  • Cooking equipments

Specification

Model RNTS-200
Temperature Range 0°C to 200°C
Electric Rating 30A/250VAC
Bulb Material Stainless Steel or Copper
Capillary Tube 1000mm (250 to 2000 mm)
Switch Circuit SPST
Dial (Knob) R/B
Stuffing Bolt PT3/8″
Weight  260g

Download

Rainbow RNTS-200 High Ampere Capillary Thermostat_DpstarGroup
