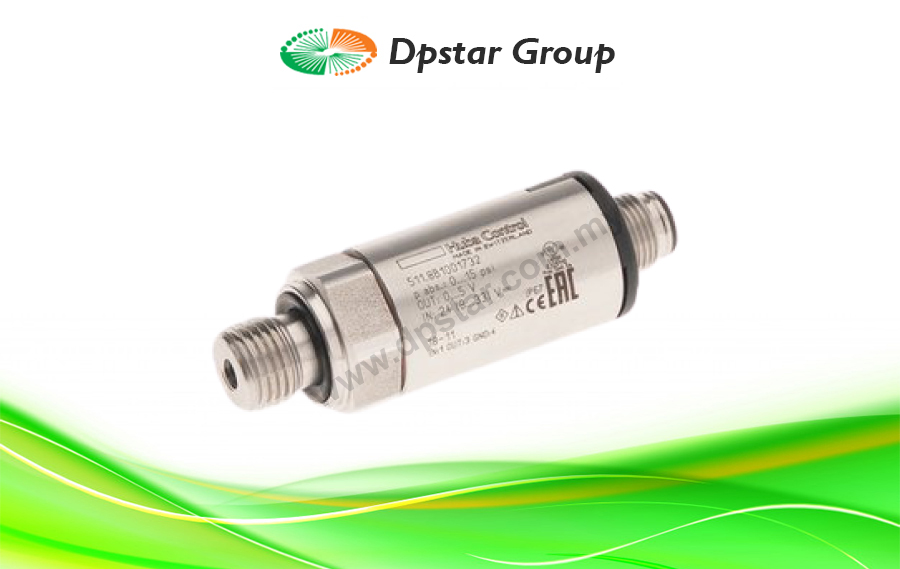

OEM Pressure Sensor – Huba 511 Series

Features

  • Compact and rugged construction for highest operational reliability
  • No media egress when exceeding rupture pressure
  • Negligible temperature influence on accuracy
  • Excellent EMC capacity
  • Saving time by quick cable mounting by the customer with swift connector
Enquiry

These compact OEM pressure transmitters type 511 meet the highest specification for mechanical stress, EMC compatibility, and operational reliability, which means that this range is particulary suitable for all demanding industrial applications.  This sensor utilises a ceramic technology, developed by Huba Control and for the last 20 years, in millions of applications, used in combination with unique integrated electronic design, means that the type 511 series has a high degree of accuracy for all temperature ranges.  These units are available in small or production quantities, with an excellent price to performance ratio.

Specification

Medium Liquids and gases
Pressure range -1 … 0 – 600 bar
Output 0 … 5 V, 1 … 6 V, 0 … 10 V, 4 … 20 mA
Accuracy < 0.5% fs
Electrical connection Cable 1.5 m, swift connector, AMP JPT, M12x1, connector DIN EN 175301-803-C
Pressure connection Inside thread or outside thread

Download

Huba Control 511 pressure sensor transmitter -1 … 0 – 600 bar-DpstarGroup
