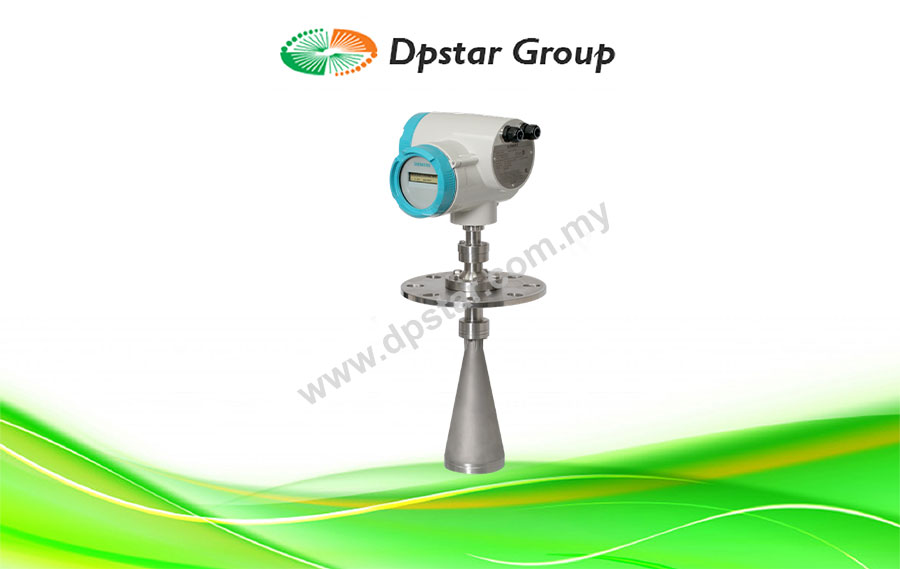

Siemens SITRANS LR460 Radar Level Transmitter


  • Process Intelligence – advanced echo processing for reliable performance
  • Intrinsically safe infrared handheld programmer
  • Extremely high signal yields high performance (high signal-to-noise ratio)
  • Quick Start Wizard for setup

Siemens SITRANS LR460 Radar Level Transmitter is designed for demanding solid material applications. When dealing with extremely low-dielectric and low-density powders, the 25 GHz SITRANS LR460 is the ideal choice. Equipped with an 8-degree beam horn antenna, this 4-wire FMCW device has demonstrated its effectiveness in numerous applications.


Range 100 m (328 ft)
Process Temperature -40 to 200 °C (-40 to 392 °F)
Process pressure 0.5 bar g (7.25 psi g)
Communications or Output mA/HART or PROFIBUS PA
Options Dust cap for sticky solids
Air purging  for sticky applications
Key Applications Long-range dusty applications, cement powder, fly-ash, coal, flour, grain, plastics
