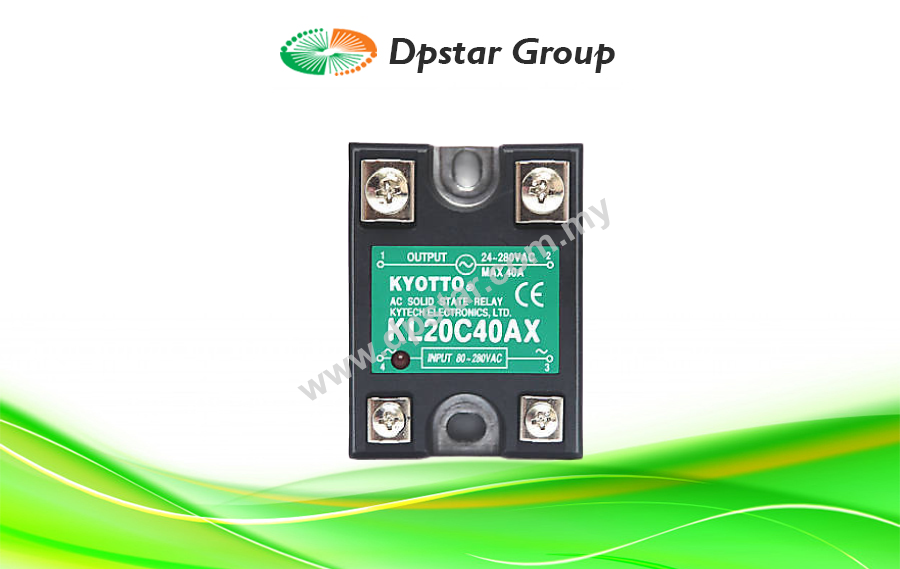

Solid State Relay – Kyotto KL 20 (AC – AC) Series

Features

• Provide high-speed, high-frequency switching operations
• No contact failures
• Generate little noise
• No operation noise





Enquiry

A solid-state relay (SSR) is an electronic switching device that switches on or off when a small external voltage is applied across its control terminals. SSRs consist of a sensor which responds to an appropriate input (control signal), a solid-state electronic switching device which switches power to the load circuitry, and a coupling mechanism to enable the control signal to activate this switch without mechanical parts. The relay may be designed to switch either AC or DC to the load. It serves the same function as an electromechanical relay, but has no moving parts.

Application

The most common application of solid state relays is in the switching of an AC load, whether that is to control the AC power for ON/OFF switching, light dimming, motor speed control or other such applications where power control is needed, these AC loads can be easily controlled with a low current DC voltage using a solid state relay providing long life and high switching speeds.



Specification

Model No. Control Voltage Range Must Turn OFF Voltage Input Impedance Max Load Current Load Voltage Range Min Blocking Voltage Max OFF State Leakage Frequency Range Max 1-Cycle Peak Surge
KL20C10AX 80 TO 280 VAC MAX 10 VDC 1.5 Kohm 10A 24-280VAC 600VAC LESS 5 mA 47~70Hz 100 A
KL20C15AX 80 TO 280 VAC MAX 10 VDC 1.5 Kohm 15 A 24-280VAC 600VAC LESS 5 mA 47~70Hz 160 A
KL20C25AX 80 TO 280 VAC MAX 10 VDC 1.5 Kohm 25 A 24-280VAC 600VAC LESS 5 mA 47-70Hz 260 A
KL20C40AX 80 TO 280 VAC MAX 10 VDC 1.5 Kohm 40 A 24-280VAC 600VAC LESS 5 mA 47-70Hz 400 A
KL20C50AX 80 TO 280 VAC MAX 10 VDC 1.5 Kohm 50A 24-280VAC 600VAC LESS 5 mA 47~70Hz 625A
KL20C75AX 80 TO 280VAC MAX 10 VDC 1.5 Kohm 75A 24-280VAC 600VAC LESS 5 mA 47~70Hz 1000A
KL20C100AX 80 TO 280VAC MAX 10 VDC 1.5 Kohm 100A 24-280VAC 600VAC LESS 5 mA 47~70Hz 1200A
Model No. Max OFF State DV/DT Max ON-State Voltage Drop Isolate Impedence Dielectric Strength Input-Output Dielectric Strength Input,Output Case Turn ON Time Turn OFF Time Capacitance In-Out Weight (G)
KL20C10AX 200  SEC 2.0VACrms  109 ohm 4000 VACrms 2500 VACrms LESS 2 mSec LESS 1/2 AC CYCLE LESS 15 PF 92 g
KL20C15AX 200  SEC 2.0VACrms 109 ohm 4000 VACrms 2500 VACrms LESS 2 mSec LESS 1/2 AC CYCLE LESS 15 PF 92 g
KL20C25AX 200  SEC 2.0VACrms 109 ohm 4000 VACrms 2500 VACrms LESS 2 mSec LESS 1/2 AC CYCLE LESS 15 PF 95 g
KL20C40AX 200  SEC 2.0VACrms 109 ohm 4000 VACrms 2500 VACrms LESS 2 mSec LESS 1/2 AC CYCLE LESS 15 PF 95 g
KL20C50AX 200  SEC 2.0VACrms 109 ohm 4000 VACrms 2500 VAC (rms) LESS 2 mSec LESS 1/2 AC CYCLE LESS 15 PF 100 g
KL20C75AX 200  SEC 2.0VACrms 109 ohm 4000 VACrms 2500 VAC (rms) LESS 2 mSec LESS 1/2 AC CYCLE LESS 15 PF 100 g
KL20C100AX 200  SEC 2.0VACrms 109 ohm 4000 VACrms 2500 VAC (rms) LESS 2 mSec LESS 1/2 AC CYCLE LESS 15 PF 100 g

Download

Kyotto KL 20 (AC – AC) Series – Solid State Relay-DpstarGroup
