Thermal Imaging System – Raytek TF150 Series Thermoforming System

Features

  • Detailed thermal images based on 40,000 measurement points per second
  • Define product-specific configurations (recipes)
  • Play back stored files as “movie”
  • Heater zones overlayed on thermal image
  • PC independent alarms
  • Integrated OPC server for remote system control
  • Analog or digital output modules
  • On board Ethernet TCP/IP communication
  • Built-in laser sighting
  • Multiple language support
Enquiry

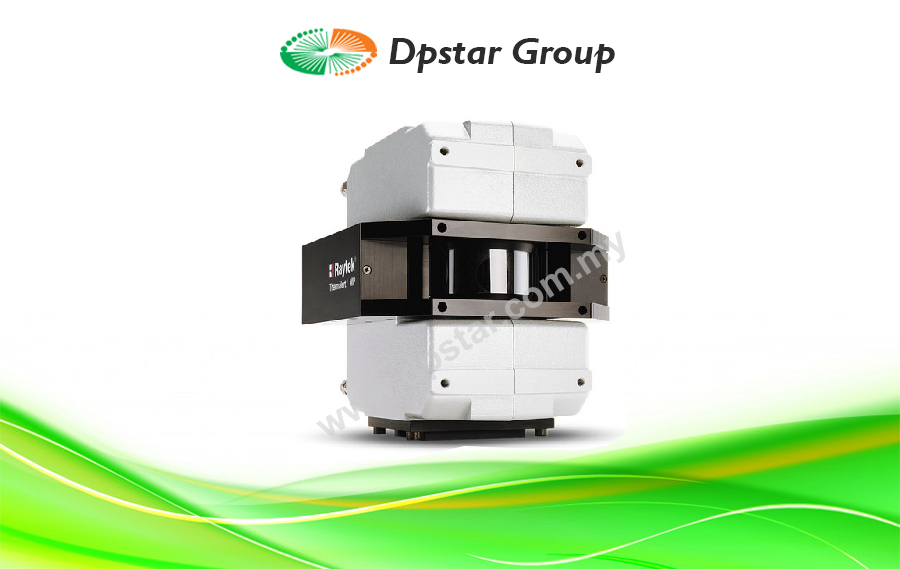

Thermal Imaging System – Raytek TF150 Series for Plastic Processing

The TF150 Thermal Imaging System allows thermoformers to visualize the temperature distribution of virtually any plastic part in thermoforming processes.

The TF150 System features an easy-to-use “point and click” user interface. It installs easily and views the sheet between the oven and forming sections from the top. Connecting the pre-wired cables to a PC and entering installation dimensions in the TF150 Software completes this easy installation process.

Specification

Temperature Range 20 to 350°C (68 to 662°F)
System Accuracy ± 2°C (4°F)
Repeatability ± 1°C (2°F)
Optical Resolution 170:1 (90% energy)
Ambient Temperature 0 to 50°C (32 to 122°F), with
water cooling 180°C (356°F)
Field of View 90°
Points per Line up to 1024 pixels
Scan Rate up to 150 Hz
