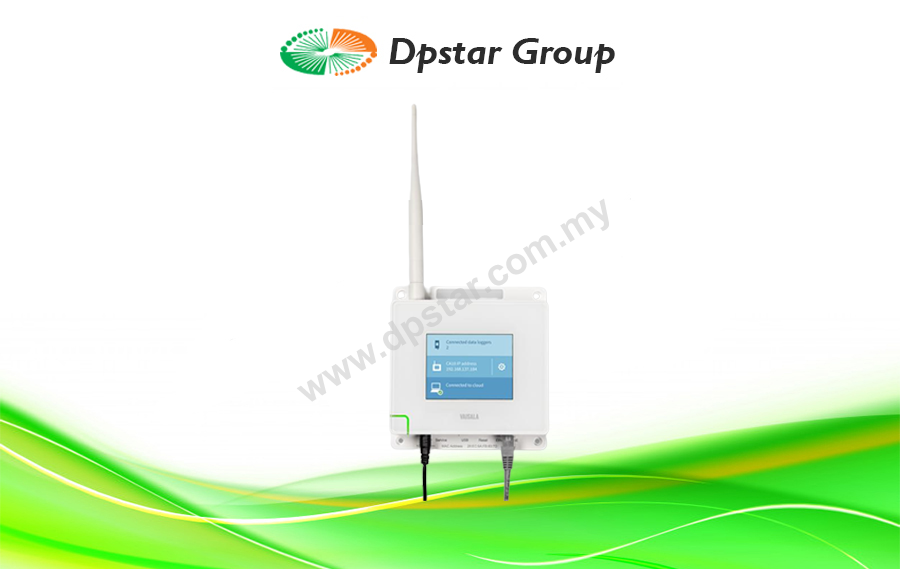

Vaisala CA10 Cloud Access Point

Features

  • Display shows connection status of data loggers and cloud service
  • Requires Internet connection through cabled Ethernet network or cellular modem
  • Powered by Power over Ethernet (PoE) or DC adapter
  • Long range LoRa™ radio with over 100 m (328 ft) typical indoor range
  • End-to-end encryption ensures secure data transmission and storage
  • Connects up to 32 CWL100 wireless data loggers to Vaisala Jade Smart Cloud
Enquiry

Dpstar is a leading supplier of environmental measurement sensors for temperature, relative humidity, pressure, dew point, CO2, and other environmental condition monitoring for industrial process application and research. Since the ’90s, we earned a reputation as a trusted partner to our clients through our commitment and dedication. We are an authorized distributor and supplier of measuring sensors solutions from renowned manufacturers Vaisala. Vaisala is a global leader in environmental and industrial measurement. Building on 80 years of experience, Vaisala provides observations for a better world. Vaisala is a reliable partner for customers around the world, offering a comprehensive range of innovative observation and measurement products and services.

Vaisala CA10 Cloud Access Point is a wireless device used to connect CWL100 data loggers to the Vaisala Jade Smart Cloud service. It allows users to manage the data loggers from the cloud interface. Data is encrypted during transfer to ensure security against eavesdropping, tampering, and transfer errors. When purchased, Vaisala CA10 access points and CWL100 data loggers are automatically linked to a specific cloud account, eliminating the need for user pairing. The CA10 always needs power and an internet connection to work.

Dimension

Key Benefits

Data integrity

Data is encrypted during LoRa transfers to protect against eavesdropping, data tampering, and transfer errors.

Time synchronization
CA10 automatically synchronizes with Network Time Protocol (NTP) servers over the Internet.

Reliability
If a data logger has a connection problem, it will automatically connect to another available nearby access point in the system. At least two access points with free capacity are needed for failover to function.

Specification

Wireless
Networking standards LoRa™
Wireless connection capacity Up to 32 supported devices
Modulation LoRa chirp spread spectrum modulation
Output power 13 dBm (20 mW)
Antenna Non-removable external antenna
Typical range (indoors) At least 100 m (approx. 330 ft)
Maximum number of access points in an area 8
Frequency bands
Model CA10E 868 MHz
Model CA10A 915 MHz
General
Compatible host systems Vaisala Jade Smart Cloud
Supported devices CWL100 data logger
Display language English
Internal clock Synchronizes with Network Time Protocol (NTP) servers over the Internet
Requirements for connectivity
Cabled Ethernet network with Internet connection (can be provided using a cellular modem)
Network provides IP address through DHCP
CA10 must be able to access TCP port 443 and UDP port 123
Inputs and outputs
Operating voltage using dedicated power supply connector 10 … 30 V DC
PoE power class Class 0
Power consumption Max. 13 W
Ethernet Interface
Supported standards 10BASE-T, 100BASE-TX
IPv4 address assignment DHCP (automatic)
Connectors
Power supply connector 2.0 mm center pin locking type DC power jack
Service port Micro-USB (2.0)
Expansion port USB type A (2.0)
Ethernet 8P8C (RJ-45)
Operating Environment
Operating environment Indoor use
IP rating IP30
Operating temperature −20 … +60 °C (−4 … +140 °F)
Operating humidity 0 … 90 %RH, non-condensing
Storage temperature −20 … +60 °C (−4 … +140 °F)
Compliance
EMC compatibility IEC/EN 61326‑1, industrial environment
Electrical safety IEC/EN 61010‑1
CA10E model
EU directives RoHS Directive (2011/65/EU) amended by 2015/863
Radio Equipment Directive, RED (2014/53/EU)
Radio standards and approvals ETSI EN 300 220-2
ETSI EN 301 489-1
Compliance marks CE, UKCA
CA10A model
Radio standards and approvals Anatel ID: 04763-19-12322
AS/NZS 4268
FCC ID: 2AO39-AP10A
IC ID: 23830-AP10A
Compliance marks ANATEL, RCM
Mechanical Specifications
Housing color White
Mounting methods Screws, tie-wrap
Weight 386 g (13.6 oz)
Dimensions (H × W × D) 311 × 133 × 37 mm (12.24 × 5.24 × 1.46 in)
Materials
Housing PC/ABS blend
Display window Chemically strengthened glass
Antenna ABS
