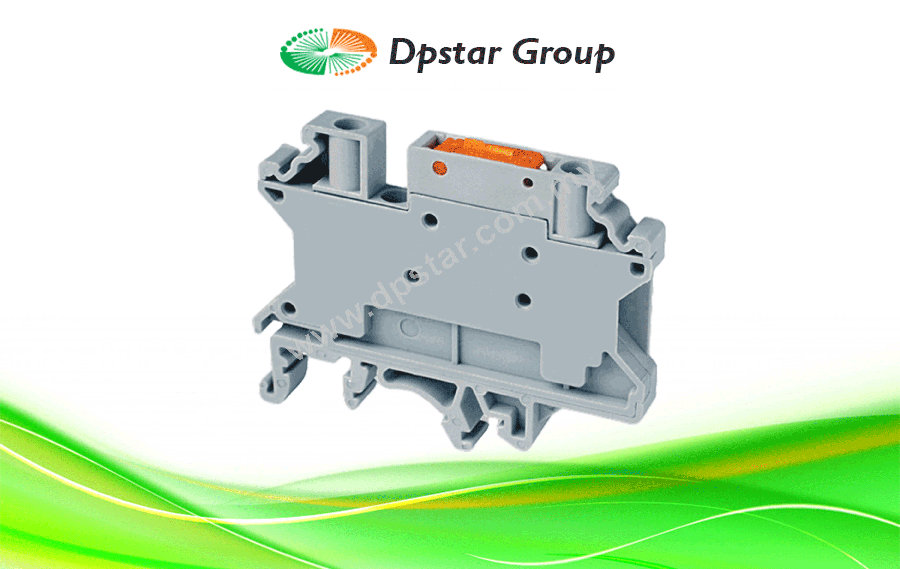

Screw Clamp Terminal Blocks – Disconnect & Test – Connectwell CKT4SP

Feature

4 sq.mm Knife Type Disconnect & Test Terminal Blocks with Socket screws and with possibility of using Jumpers

These blocks are used measuring control and regulatory circuits. they provide a clear functional advantage for devices having utility instruments and associated transformers.in ckt4sp disconnection is achieved by lifting a lever which operates the knife contact. Specially designed socket headed screws act as test monitoring points in disconnecting & test Terminal blocks, also there is a possiblity of jumpering between Terminal Blocks.

Enquiry
Category:
4 sq.mm Knife Type Disconnect & Test Terminal Blocks with Socket screws and with possibility of using Jumpers

These blocks are used measuring control and regulatory circuits. they provide a clear functional advantage for devices having utility instruments and associated transformers.in ckt4sp disconnection is achieved by lifting a lever which operates the knife contact. Specially designed socket headed screws act as test monitoring points in disconnecting & test Terminal blocks, also there is a possiblity of jumpering between Terminal Blocks.

Specification



TECHNICAL DATA

Rated Voltage 1000 V
Rated Current 28 A
Tightening Torque 0.5 Nm
Housing Material Polyamide
Product Function Knife Type Discconnect and Test
Mounting Possibility DIN 32/DIN 35/DIN 35-15 Rail
Screw Size M3
Operated by Screwdriver
Rated Surge Voltage 8 V
Pollution Degree 3

CONNECTION DATA

Conductor Cross Section Stranded min. 0.2 mm²
Conductor Cross Section Stranded max. 4 mm²
Conductor Cross Section AWG/Kcmil min 24 AWG
Conductor Cross Section AWG/Kcmil max 10 AWG
Conductor Cross Section Stranded with Ferrule/Lug min 0.2 mm²
Conductor Cross Section Stranded with Ferrule/Lug max 6 mm²
2 Conductors with same Cross Section Stranded min 0.2 mm²
2 Conductor with same Cross Section Stranded max 2.5 mm²
Conductor Cross Section Solid min 0.2 mm²
Conductor Cross Section Solid max 6 mm²
2 Conductors with same Cross Section Stranded with TWIN Ferrule/Lug min 0.2 mm²
2 Conductor with same Cross Section Stranded with TWIN Ferrule/Lug max 2.5 mm²
Stripping Length 8 mm
Internal Cylindrical Guage A4

DIMENSIONS

Height with DIN 15 x 5 mm rail 46 mm
Height with DIN 32 rail 51.5 mm
Height with DIN 35 x 15 mm rail 53.5 mm
Height with DIN 35 x 7.5 mm rail 46 mm
Length 58.5 mm
Width (Thickness) 6 mm

Ordering Code

CAT. NO. DESCRIPTION STD. PACK
CKT4SP 4 sq.mm Knife Type Disconnect & Test Terminal Blocks with Socket screws and Jumper Possibility in Grey colour 50
CKT4SPBU 4 sq.mm Knife Type Disconnect & Test Terminal Blocks with Socket screws and Jumper Possibility in Blue colour 50
