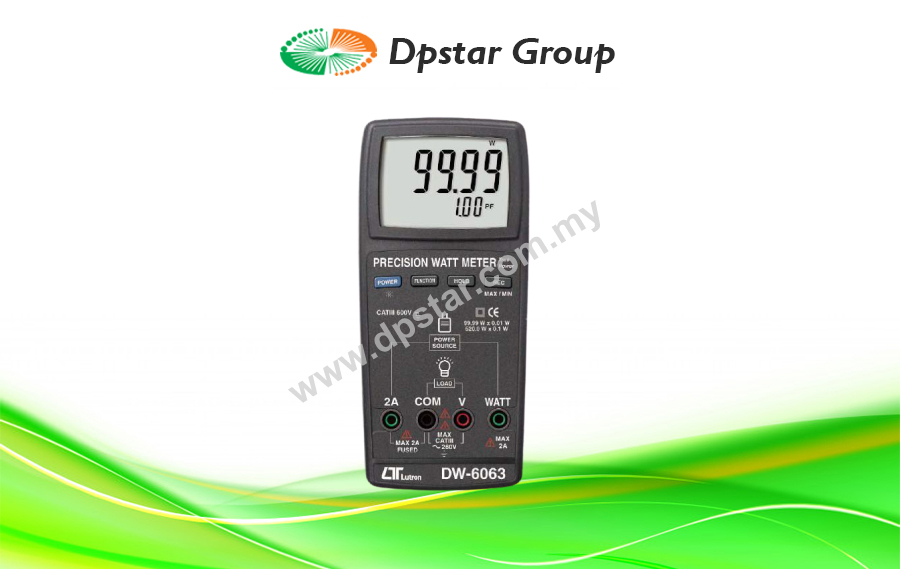

Lutron DW-6063 – Precision Watt Meter

Features

  • 0.01 W resolution, precision Watt meter is special for low power measurement.
  • Designed for the high resolution low power measurement.
  • Watt, Power factor, ACV, ACA.
  • True power ( watt ) measurement.
  • True rms measurement for ACV, ACA.
  • Auto range for Watt measurement
  • Power factor : 0.01 to 1.00 x 0.01 PF
  • ACV : 90.0 to 260.0 V x 0.1 V.
  • ACA : 0 to 2.000 A x 0.001 A.
  • ACV input impedance : 10 Mega OHM.
  • Data Hold, Record (Max., Min.).
  • RS232/USB Computer interface.
  • Optional data acquisition software, SW-U801-WIN.
  • Optional Excel data acquisition software, SW-E802.
  • Optional USB cable, USB-01.
Enquiry
Categories: , , ,
Love0

Lutron DW-6063 Precision Watt Meter is engineered for precise measurement of low power consumption, featuring a resolution of 0.01 W. It is designed to excel in accurately measuring low power levels, providing readings for Watt, Power Factor, AC Voltage, and AC Current. With capabilities for true power measurement and True RMS measurements for AC Voltage and AC Current, it ensures accuracy across various parameters.

The device offers auto-ranging for Watt measurement, with two ranges: from 0.00 to 99.99 W with a resolution of 0.01 W, and from 100.0 to 520.0 W with a resolution of 0.1 W. It can measure Power Factor from 0.01 to 1.00 with a resolution of 0.01, AC Voltage from 90.0 to 260.0 V with a resolution of 0.1 V, and AC Current from 0 to 2.000 A with a resolution of 0.001 A. Its AC Voltage input impedance is 10 Mega Ohms.

Additional features include Data Hold and Record (Max., Min.), along with RS232/USB computer interface compatibility. It offers the option for data acquisition software, SW-U801-WIN, and Excel data acquisition software, SW-E802, with an optional USB cable, USB-01.

Specification

Circuit Custom one-chip of microprocessor LSI circuit
Display • Large LCD display max. reading 9999.
• Digit size : 21.8 x 8.5 mm
• Dual value display with backlight
Measurement Unit • ACV : 0.1 to 260.0 V
• ACA : 0.1 mA to 2000 mA.
• WATT : 0.01 W to 520.0 W
• PF : 0.01 to 1.00
Over input ” —- ” mark indication .
Zero  Automatic adjustment
Sampling Time Approx. 1 second
Data hold Freeze the display reading .
Memory Recall Maximum & Minimum value
Data output  RS232 / USB PC Computer interface
• Connect the optional RS232 cable
UPCB – 02 will get the RS232 plug.• Connect the optional USB cable
USB – 01 will get the USB plug
Operation Temperature 0°C to 50°C ( 32°F to 122°F ).
Power off Auto shut off, saves battery life, or manual off by push button.
Operating temperature 0 to 50°C( 32 to 122°F ).
Operating  humidity Less than 80% R.H.
Power supply Alkaline or Heavy duty type DC 9V battery 006P , MN1604 (PP3) or equivalent.
Power Consumption Approx. DC 10 mA
Weight 398 g/0.88 LB
Dimension 190 x 88 x 40 mm ( 7.5 x 3.5 x 1.6 inch ).
Accessories included • Instruction manual…………………….. 1 PC
• Test lead (Red & Black)……………. 1 Pair
Optional accessories • AC to DC 9V adapter
• Holster. HS-03
• SD card DATA LOGGER, DL-9602SD
• USB cable , USB – 01
• RS232 cable , UPCB – 02
• Data Acquisition software, SW-U801-WIN
• Excel Data Acquisition software, SW-E802
