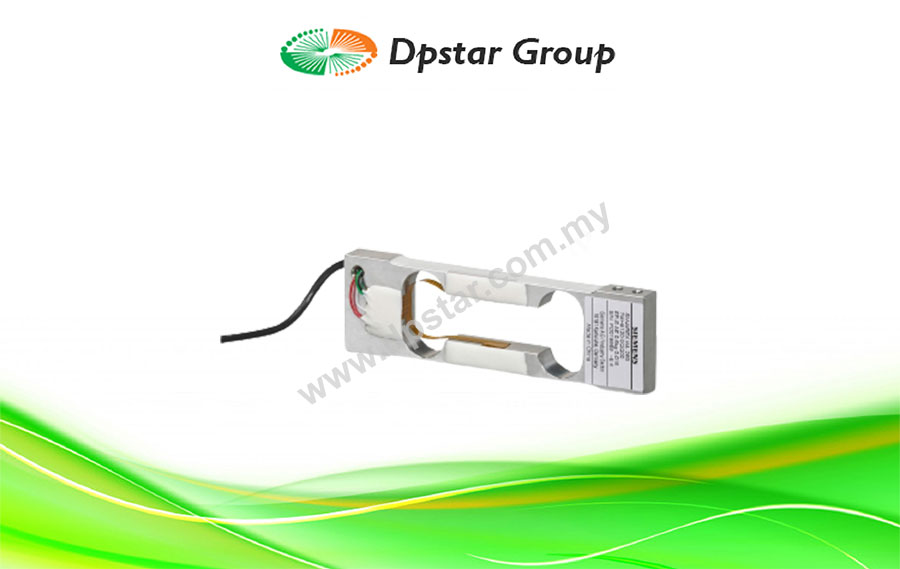

Siemens SIWAREX WL260 SP-S AE Load Cell

Enquiry
Category:
Love0

Siemens SIWAREX WL260 SP-S AE Load Cell is well-suited for the narrowest load ranges, spanning from 0.3 kg to 3 kg, and can be employed on platforms measuring up to 200 mm x 200 mm (7.87 × 7.87 inches). This load cell is particularly applicable in high-resolution scales, as it exhibits a maximum error of just 0.010% concerning the rated characteristic value.

Dimensional drawings

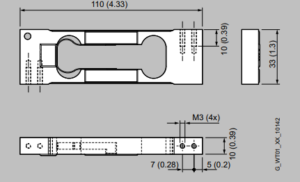

SIWAREX WL260 SP-S AE load cell, dimensions in mm (inch)

Specification

Possible applications Small platform scales
Small belt scales
Type of construction Platform load cell
Loads
Rated load Emax		 • 3 kg (0.66 lb)
• 0.6 kg (1.32 lb)
• 1 kg (2.20 lb)
• 1.2 kg (2.64 lb)
• 1.5 kg (3.31 lb)
• 3 kg (6.61 lb
Temperature coefficient
• Zero signal TKo
• Characteristic value TKc
 • 0.02% Cn/10 K
•0.0175% Cn/10 K
Maximum working load Lu 120% Emax
Rated displacement hn at Emax 0.180 … 0.182 mm (0.007 inch)
Degree of protection acc. to EN 60529 IP65
