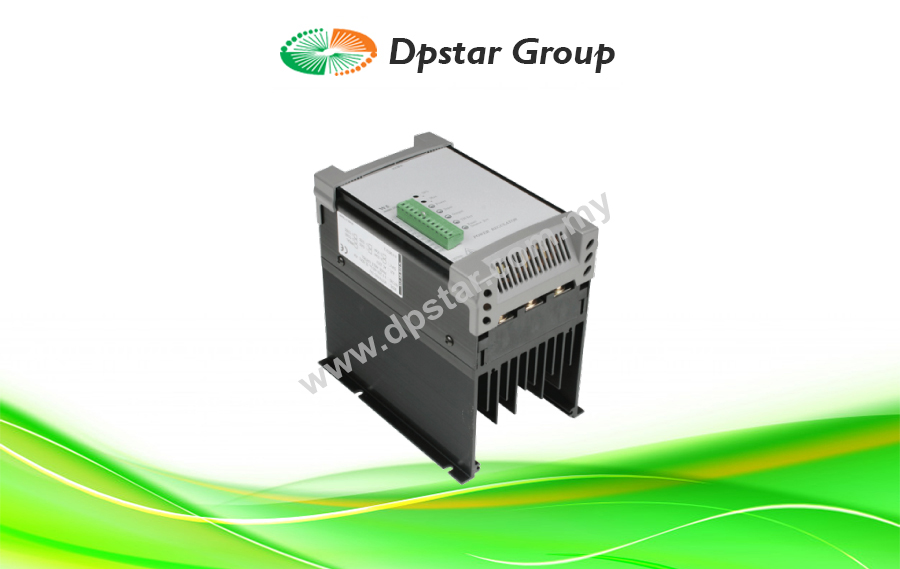

Sipin W5TP4V045-24J SCR | Three Phase Thyristor Power Regulator (45Amp)

Key Features

  • 45A rated output capacity
  • Input voltage range: 200–480VAC
  • Phase angle control for precise voltage regulation
  • Built-in buffering time adjustment (1–22 seconds)
  • LED display panel for operating condition and fault monitoring
  • Front panel VR adjustment for Max and SFS settings
  • Independent auxiliary power control (AC1, AC2)
  • Automatic 50/60Hz power frequency detection
  • Fault detection for SCR overheating, fuse burnout, and power phase errors
  • Alarm output via dry contact
  • Analog signal compatibility: 4–20mA, 0–10VDC, 2–10VDC, and others
  • European-style detachable signal connectors
  • Air-cooled design with heat sink
  • Operating temperature range: -10°C to 45°C
Enquiry
Category:
Love0

Sipin W5TP4V045-24J is a durable three-phase thyristor power regulator rated at 45A, engineered for high-precision voltage control in industrial heating and automation applications. This unit offers stable phase angle control with smooth output performance, making it ideal for resistive and inductive loads. Equipped with LED status indicators, adjustable output settings, and multiple safety features, it ensures consistent performance under demanding operating conditions. The unit supports a wide input voltage range of 200–480VAC and is designed for easy installation with detachable connectors and air-cooling architecture.

Specification

Model W5TP4V045-24J
Rated Current 45A
Power Input Voltage 200~480VAC
Power Frequency Detection 50/60Hz (automatic)
Cooling Method Air-cooling with heat sink
Ambient Temperature -10°C to 45°C
Humidity Below 90%RH (non-condensing)
Dimensions (L × W × H) 200mm × 140mm × 145mm
Weight 3.0 kg (net)

Download

Sipin W5TP4V045-24J SCR Three Phase Thyristor Power Regulator (45 Amp)_DpstarGroup
