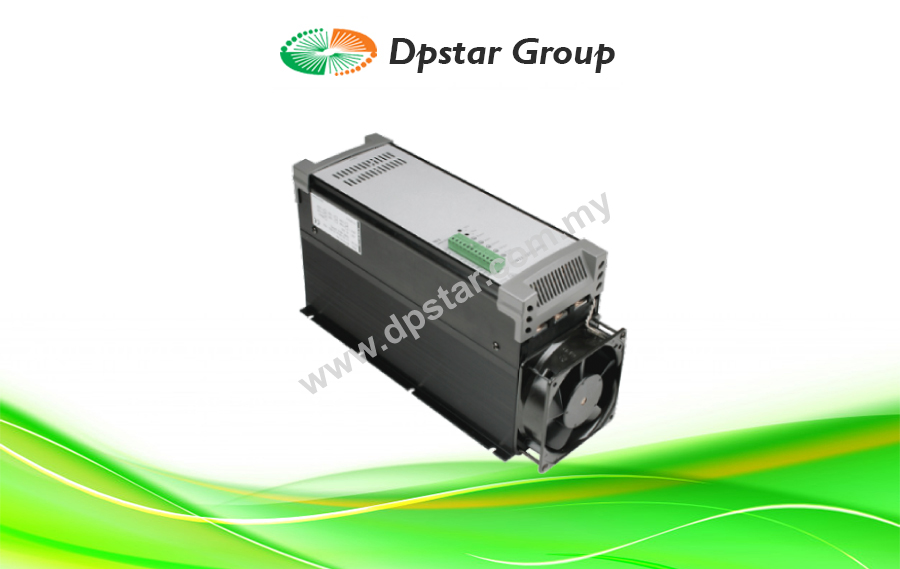

Sipin W5TP4V080-24J SCR | Three Phase Thyristor Power Regulator (80Amp)

Key Features

  • 80A rated output capacity
  • Operates on 200–480VAC input range
  • Continuous phase angle control for smooth voltage regulation
  • Adjustable output buffering time (1–22 seconds)
  • LED panel for real-time operation and fault status
  • Front-facing VR controls for Max and SFS adjustments
  • Independent auxiliary power inputs (AC1, AC2)
  • Automatic power frequency detection (50/60Hz)
  • Fault detection for SCR overheating, fuse burnout, and power phase error
  • Dry contact output for alarm signaling
  • Compatible with various input signals: 4–20mA, 0–10VDC, 1–5VDC, 2–10VDC
  • Easy-to-install with detachable European-style connectors
  • Fan-cooled enclosure with heat sink
  • Operating environment: -10°C to 45°C
Enquiry
Category:
Love0

Sipin W5TP4V080-24J is a robust three-phase thyristor power regulator rated at 80A, built for high-load industrial applications requiring stable and accurate power control. With continuous phase angle control and a wide input voltage range of 200–480VAC, this model is ideal for regulating power to resistive and inductive heating systems. It features integrated LED indicators, adjustable output buffering, and built-in safety functions such as overheat and fuse failure protection. The unit’s compact design with air cooling and detachable connectors makes installation and maintenance simple and efficient.

Specification

Model W5TP4V080-24J
Rated Current 80A
Power Input Voltage 200~480VAC
Power Frequency Detection 50/60Hz (automatic)
Cooling Method Fan-cooling with heat sink
Ambient Temperature -10°C to 45°C
Humidity Below 90%RH (non-condensing)
Dimensions (L × W × H) 200mm × 140mm × 205mm
Weight 3.1 kg (net)

Download

Sipin W5TP4V080-24J SCR Three Phase Thyristor Power Regulator (80Amp)_DpstarGroup
