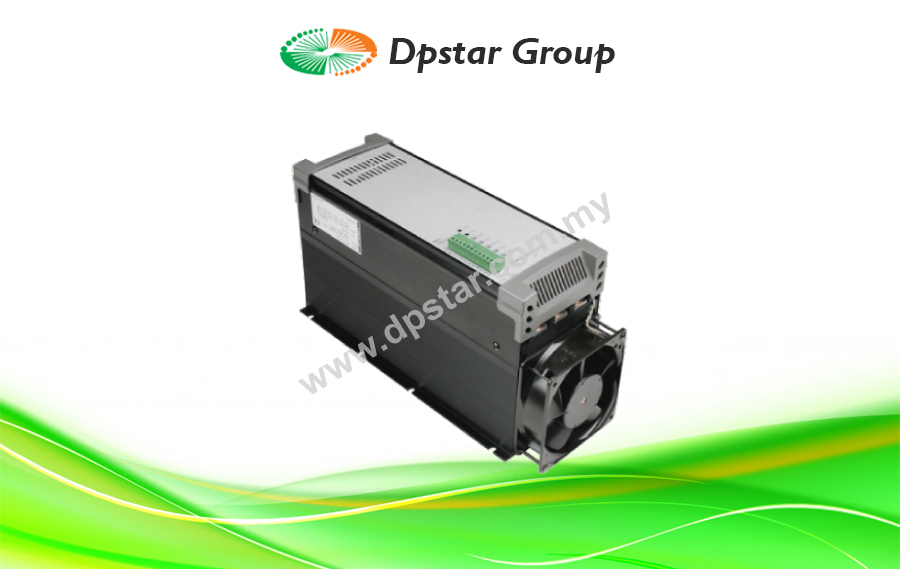

Sipin W5TP4V100-24J SCR | Three Phase Thyristor Power Regulator (100Amp)

Key Features

  • 100A rated output capacity
  • Wide input voltage range: 200–480VAC
  • Continuous phase angle control for accurate output
  • Adjustable buffering time (1–22 seconds) for smooth voltage ramp-up
  • Multi-LED panel for status and fault monitoring
  • Max and SFS VR adjustments located on front panel
  • Independent auxiliary power supplies (AC1, AC2)
  • Automatic detection of 50/60Hz frequency
  • Built-in protection for SCR overheating and fuse failure
  • Dry contact alarm output for external fault signaling
  • Supports input types: 4–20mA, 0–10VDC, 2–10VDC, and more
  • Detachable signal connectors for simple wiring and maintenance
  • Fan-cooled enclosure with heat sink
  • Suitable for ambient conditions from -10°C to 45°C
Enquiry
Category:
Love0

Sipin W5TP4V100-24J is a heavy-duty three-phase thyristor power regulator with a 100A capacity, engineered for reliable voltage regulation in high-power industrial environments. It features phase angle control for continuous and stable output, making it suitable for resistive and inductive loads.

The unit includes built-in LED indicators, front panel adjustments, and essential safety protections such as SCR overheat detection and fuse monitoring. Its compact air-cooled design and wide input voltage compatibility ensure performance, safety, and easy integration across a range of applications.

Specification

Model W5TP4V100-24J
Rated Current 100A
Power Input Voltage 200~480VAC
Power Frequency Detection 50/60Hz (automatic)
Cooling Method Fan-cooling with heat sink
Ambient Temperature -10°C to 45°C
Humidity Below 90%RH (non-condensing)
Dimensions (L × W × H) 200mm × 140mm × 205mm
Weight 3.1 kg (net)
