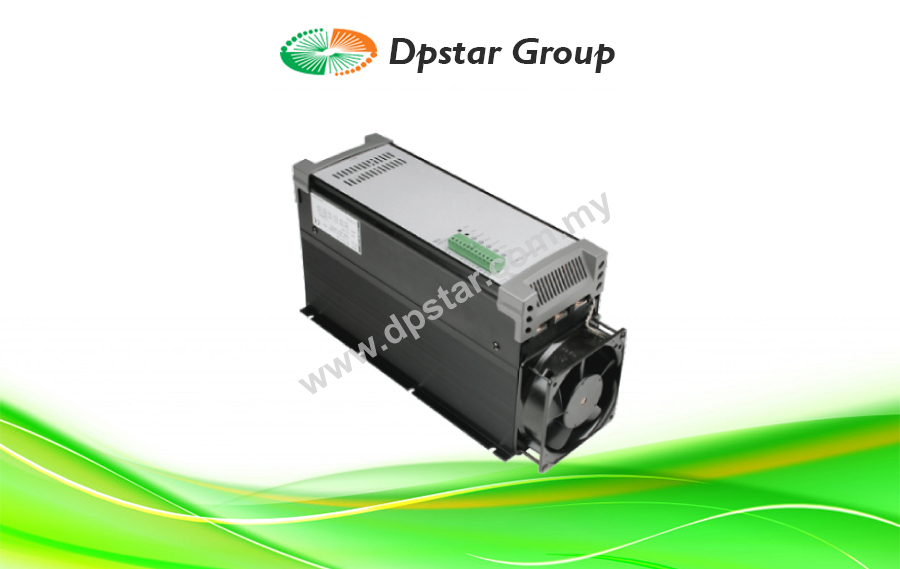

Sipin W5TP4V150-24J SCR | Three Phase Thyristor Power Regulator (150Amp)

Key Features

  • 150A rated output capacity
  • Wide input voltage: 200–480VAC
  • Phase angle control for continuous output regulation
  • Adjustable output buffering time (1–22 seconds)
  • Multi-LED panel for operation and fault indication
  • Front panel Max and SFS VR controls
  • Independent AC1 and AC2 auxiliary power supply inputs
  • Auto detection of 50/60Hz power frequency
  • Built-in protection for SCR overheating, fuse failure, and phase errors
  • Dry contact alarm output for external signaling
  • Supports multiple analog inputs: 4–20mA, 0–10VDC, 2–10VDC, etc.
  • Detachable European-style connectors for easy wiring
  • Fan-cooled enclosure with heat sink
  • Operating temperature: -10°C to 45°C
Enquiry
Category:
Love0

Sipin W5TP4V150-24J is a three-phase thyristor power regulator with a 150A current capacity, designed for industrial power control applications requiring high current handling and precise output regulation. It uses phase angle control for smooth voltage delivery across resistive and inductive loads.

With integrated fault detection, front panel adjustments, and LED indicators, the unit ensures reliable operation and ease of maintenance. Its fan-cooled housing, detachable connectors, and compatibility with various control signals make it a trusted solution for process heating, automation, and power systems.

Specification

Model W5TP4V150-24J
Rated Current 150A
Power Input Voltage 200~480VAC
Power Frequency Detection 50/60Hz (automatic)
Cooling Method Fan-cooling with heat sink
Ambient Temperature -10°C to 45°C
Humidity Below 90%RH (non-condensing)
Dimensions (L × W × H) 326mm × 140mm × 205mm
Weight 4.8 kg (net)

Download

Sipin W5TP4V150-24J SCR Three Phase Thyristor Power Regulator (150Amp)_DpstarGroup
