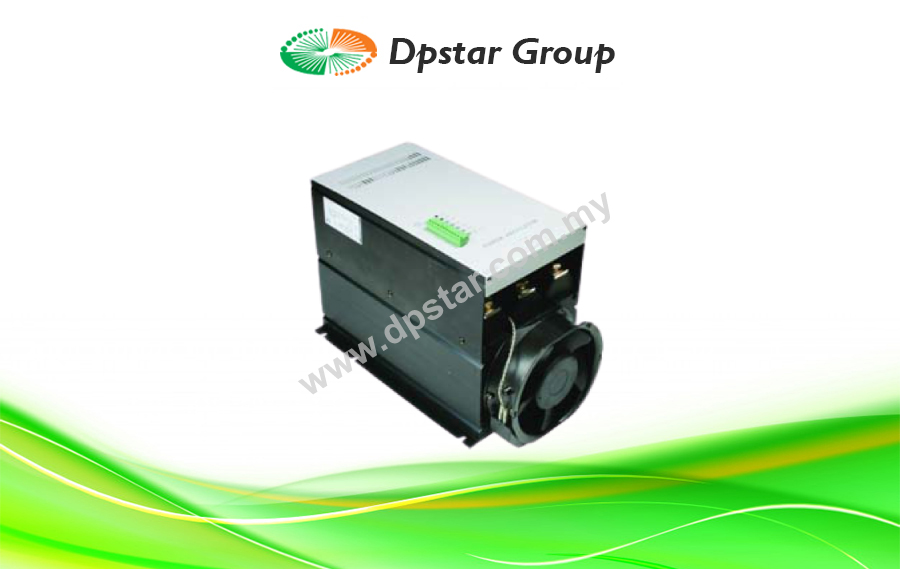

Sipin W5TP4V230-24J SCR | Three Phase Thyristor Power Regulator (230Amp)

Key Features

  • 230A rated output capacity
  • Input voltage: 200–480VAC
  • Phase angle control for steady and accurate voltage output
  • Adjustable buffering time (1–22 seconds)
  • LED display panel for live operating and fault status
  • Front panel Max and SFS VR adjustment controls
  • Dual auxiliary power input (AC1, AC2)
  • Automatic detection of 50/60Hz frequency
  • Protection features: SCR overheat detection, fuse burnout, and phase error shutdown
  • Alarm output via dry contact for external system alerts
  • Compatible with analog signals: 4–20mA, 0–10VDC, 2–10VDC, etc.
  • Detachable European-style control connectors
  • Fan-cooled design with heat sink for thermal stability
  • Operating environment: -10°C to 45°C
Enquiry
Category:
Love0

Sipin W5TP4V230-24J is a high-capacity three-phase thyristor power regulator rated at 230A, engineered for large-scale industrial systems requiring stable and continuous voltage regulation. With phase angle control and a wide voltage input range, it provides precise control for both resistive and inductive loads.

This model includes LED indicators, fault detection, and manual adjustment for key parameters. Designed with fan-cooling and robust construction, it ensures safe operation and long-term reliability in demanding applications such as heat processing, automation, and heavy-duty power distribution.

Specification

Model W5TP4V230-24J
Rated Current 230A
Power Input Voltage 200~480VAC
Power Frequency Detection 50/60Hz (automatic)
Cooling Method Fan-cooling with heat sink
Ambient Temperature -10°C to 45°C
Humidity Below 90%RH (non-condensing)
Dimensions (L × W × H) 322 × 215 × 265 mm
Weight 15.3 kg (net)

Download

Sipin W5TP4V230-24J SCR Three Phase Thyristor Power Regulator (230Amp)_DpstarGroup
