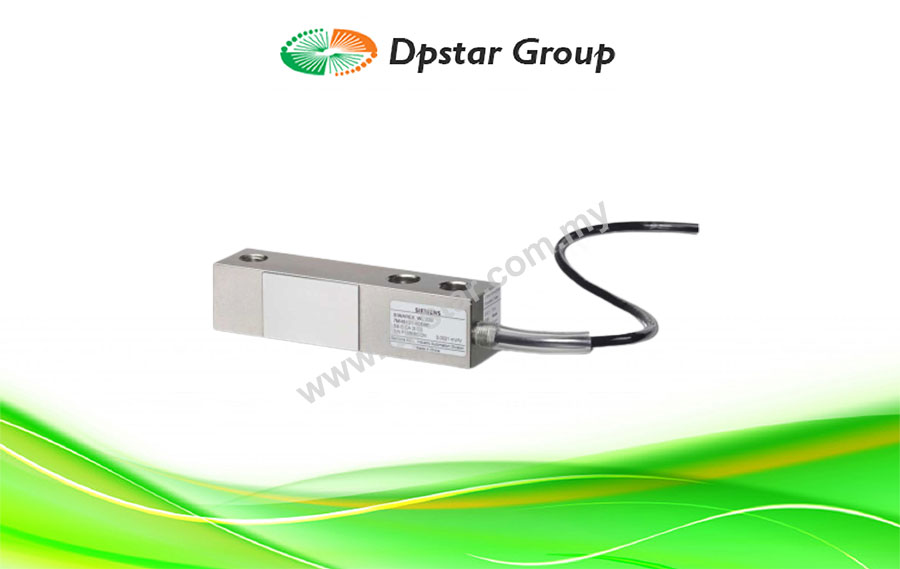

Siemens SIWAREX WL230 SB-S CA Load Cell

Enquiry
Category:
Love0

Siemens SIWAREX WL230 SB-S CA Load Cell is constructed using specialized nickel-plated steel. The load classes of 100 kg (equivalent to 220.46 lbs) and 250 kg (equivalent to 551.16 lbs) are designed as bending beams. These WL230 SB-S CA load cells are particularly well-suited for use in platform scales and hopper scales, where the introduction of the load into the load cell is facilitated by an adjustable foot. The load cell is offered in a range of rated loads, from 100 kg to 10 t (equivalent to 220.46 lbs to 0.98 tons), enabling the use of a single cell type in scales with multiple weighing ranges. These load cells comply with legal-for-trade standards as per OIML R60 and are available in accuracy classes C3, C4, and 5.

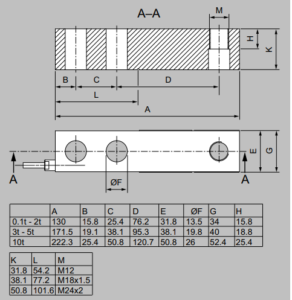

Dimensional drawings
SIWAREX WL230 SB-S CA load cell, dimensions in mm (inch)

Specification

Possible applications • Platform scales
• Hopper scales
Type of construction • Bending beam up to rated load 250 kg
(551.16 lb)
• Shear beam from rated load 500 kg
(1 102.31 lb)
Rated load Emax • 100 kg (220.46 lb)
• 250 kg (551.16 lb)
• 500 kg (1 102.31 lb)
• 1 t (0.98 tn. l.)
• 2 t (1.97 tn. l.)
• 3 t (2.95 tn. l.)
• 5 t (4.92 tn. l.)
• 10 t (9.84 tn. l.)
Input resistance Re 350 ± 3.5 Ω
Output resistance R 350 ± 3.5 Ω
Accuracy class according to OIML R60 C3, C4, C5
Degree of protection acc. to EN 60529 IP67
