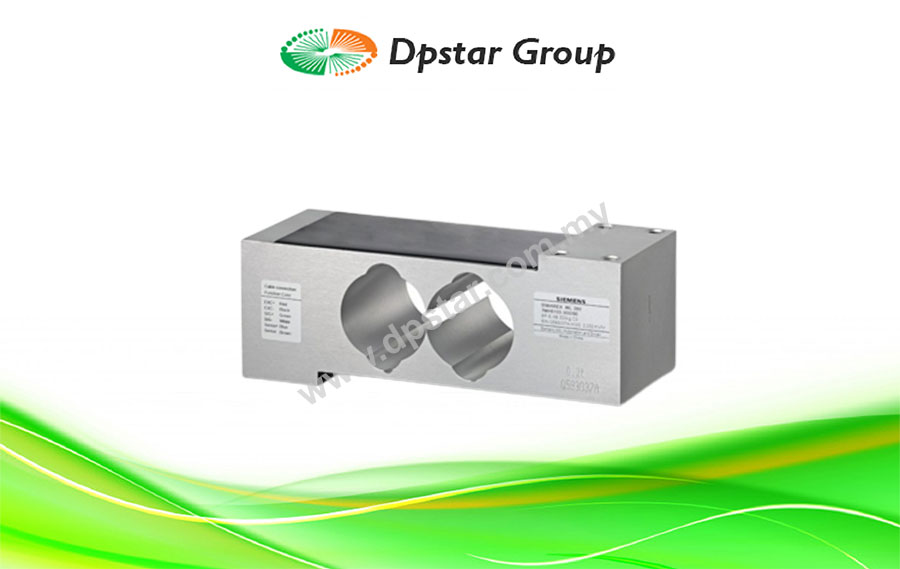

Siemens SIWAREX WL260 SP-S AB Load Cell

Enquiry
Category:
Love0

Siemens SIWAREX WL260 SP-S AB Load Cell is appropriate for use in platform scales ranging from small to medium, featuring a single load cell and accommodating platform sizes up to 600 × 600 mm (23.62 × 23.62 inches). It is also well-suited for Class III weighing machines with a maximum division of nmax = 3,000d.

Dimensional drawings

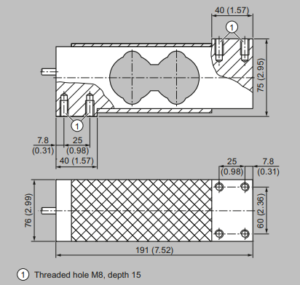

SIWAREX WL 260 SP-S AB load cell, dimensions in mm (inch)

Specification

Possible applications •  Platform scales
• Belt scales
Type of construction Single point load cell
Loads
Rated load Emax		 • 50 kg (110.23 lb)
• 75 kg (165.35 lb)
• 100 kg (220.46 lb)
• 150 kg (330.69 lb)
• 200 kg (440.92 lb)
• 300 kg (661.37 lb)
• 500 kg (1 102.31 lb)
Temperature coefficient
• Zero signal TKo
• Characteristic value TKc
 0.017% Cn/10 K
0.014% Cn/10 K
Degree of protection according to EN 60529,
IEC 60529		 IP65
Certificates and approvals
Accuracy class according to OIML R60
 C3 1)
